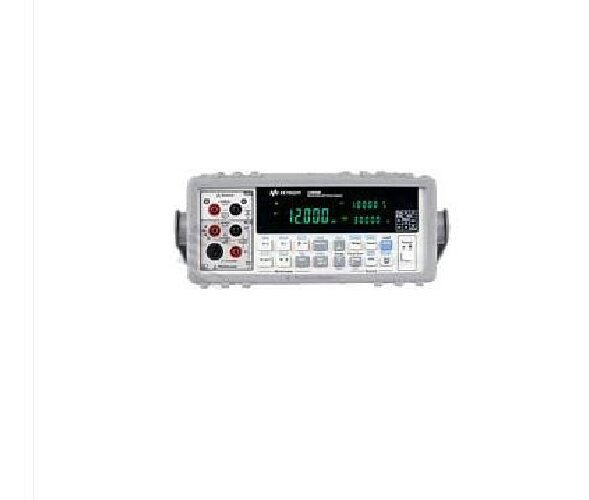

是德科技Keysight万用表|直流电源U3606B

Keysight U3606B 万用表|直流电源兼具 5位半数字万用表和 30 W 电源的功能，这两大功能既可同时使用，又可分开使用。

Keysight U3606B 万用表|直流电源 描述

The U3606B multimeter | power supply combines a full featured 5.5 digit digital multimeter with a 30 Watt power supply in a single, compact unit. Hence it is capable of powering up your device under test (DUT) while you measure voltage, current and more at the same time.

Measurement capabilities include:

•Sweep function (ramp and scan) to simplify device characterization for multi-level DC bias testing such as DC motor testing, transistor gain test, relay control and margin tests.
•Low resistance measurement for higher accuracy


Keysight U3606B 万用表|直流电源 主要特性与技术指标

Full-featured 5 ½ digit DMM

•5½ digit, 120,000 counts resolution
•10 measurement functions and 8 built-in math functions
•4-wire low resistance measurement with 0.001 mΩ resolution
•0.025% DC voltage accuracy


Full-featured 30 W, DC power supply

•30 V/1 A, 100 mA/30 V, 8 V/3 A and 1000 mV/3 A
•0.01% + 3mV load regulation
•Over voltage (OVP) and over current (OCP) load protection
•4.8kHz Square-wave generator, auto ramp and scan capability

Other Features

•Built-in GPIB (IEEE-488) and USB 2.0 full speed interface
•SCPI language compatible
•Universal AC input (100V - 240V, 45Hz to 66Hz)
•Kensington lock slot to prevent theft or misplacement
